Pole Mounting Bracket Assembly provides flexible mounting options for an ActiveLED^® SLRA Series Streetlight (Round-Arm Mount) to a square, hexagonal, octagonal, steel, concrete, wood or composite pole. Also suitable for mounting ActiveLED Security or Trail / Walkway fixtures

Sturdy design mounts an ActiveLED SLRA (Round-Arm-Mount) Series Streetlight to a pole via four high-tensile stainless steel carriage bolts. The Round Mounting Arm can be swiveled through 180° to provide precise rotational adjustment and alignment of the light fixture with the task. Also suitable for mounting ActiveLED Security or Trail / Walkway fixtures.

The Universal-B Pole Mounting Bracket Assembly is ideally suited for installations where it is not possible or inadvisable to drill holes or drive bolts into the Pole.
It is designed for easy installation with all parts pre-drilled and ready for assembly. The Backplate is sturdily made from 0.187" thick 304-2B Stainless Steel and includes slots to accommodate two optional mounting straps.

The Pole can be square, hexagonal, octagonal steel, concrete, wood or composite construction. Requires adapter kit 00-27-0009-0100 to attach to a Round Pole.

The Universal-B Pole Mounting Bracket Assembly is sufficiently versatile that it can also be used to mount the ActiveLED Light Fixture to a vertical wall or structure.

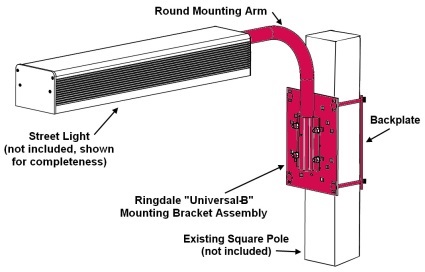

Detailed Schematic of the ActiveLED^® Universal-B Mounting Bracket Assembly (assembly parts highlighted in red)

ActiveLED^® Universal-B Mounting Bracket Assembly Contents

● Backplate, pre-drilled with multiple bolt patterns (2)
● Round Mounting Arm (1.5" O/D) (qty 1, 90° bend)
● Clamp for Round Arm (1)
● High-tensile SS Carriage Bolts, 3/8"-16 x 8" (4)
● Assorted High-tensile bolts, nuts & washers

ActiveLED® Streetlights

Select the streetlight that best meet the application from the comprehensive Ringdale ActiveLED range, including:
● 24, 48 or 72 Watt fixtures
● Traditional, Wide or Xtra-Wide Light Pattern
● Etched or Clear Second Diffuser
● Energy Management Options, including motion sensing and dimming
● Mounting Options - Square Pole, Round Arm or Pole Top (factory configured)

Please refer to the separate Round-Arm-Mount Streetlight datasheet for more details.

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Mounting Bracket Assembly.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Prerequisites

Requires ActiveLED Street Light SLRA (Round-Arm-Mount) series for attaching to the Round Arm.
Also suitable for ActiveLED Security or Trail / Walkway fixtures.

ActiveLED^® Universal-B Bracket Part Number:

00-27-0009-0002, Unpainted Stainless Steel
Requires adapter kit 00-27-0009-0100 to attach to a Round Pole

NOTES:
Pole, Light Fixture not included in kit, light fixture sold separately.
