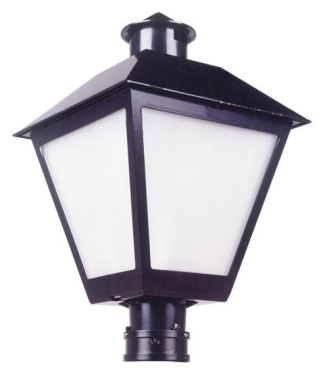

Provides a 21st century solution for existing "classic" Town & Country" Post-Top exterior light fixtures with an energy efficient, high performance LED retrofit with 26 Watt of LEDs.
The U.S.-manufactured ActiveLED® Classic "Town & Country" Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light bulb assembly in most existing GE Exterior Post-Top fixtures, providing energy savings of 50-80 percent.
Municipalities, universities and colleges use Vintage style lamplights for roadways, sidewalks and public spaces in historical and residential neighborhoods. Typically, these lights have large acrylic or glass globes and cast aluminum bases that conceal 175-Watt Metal Halide light bulbs and electronics that need frequent replacement.
The existing lamplight can be retrofitted with the low-wattage ActiveLED light engine and still have the same “old town” characteristics. The only noticeable difference in its outward appearance is a better quality of light, which helps to improve the safety value of its surroundings.
Ringdale’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.
The ActiveLED Classic "Town & Country" Light Retrofit meets many municipalities’ latest sustainability mandates for reducing energy usage. For applications where lower light levels would be appropriate during periods of inactivity, the retrofitted GE Town & Country lamplight can be configured with a digital dimmer and motion sensor.
The innovative design of the ActiveLED "Town & Country" Retrofit is fully dark sky compliant and delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties.
ActiveLED® Classic "Town & Country" Retrofit Product Overview
Ringdale provides five models of ActiveLED Classic "Town & Country" Retrofits to GE Post-Top Luminaires for different lighting applications:
|
Product Code |
Application |
CCT Color |
Wattage |
Light Output |
Suggested Mount Height |
T&C 5026-R |
Walk Path |
5000K |
26 Watt |
~ 2,360 Lumens |
4.0 m / 13 ft |
T&C 4026-R |
Walk Path |
4000K |
26 Watt |
~ 2,240 Lumens |
4.0 m / 13 ft |
T&C 3526-R |
Parking Lot |
3500K |
26 Watt |
~ 2120 Lumens |
4.0 m / 13 ft |
T&C 3026-R |
Pedestrian Area |
3000K |
26 Watt |
~ 2,010 Lumens |
4.0 m / 13 ft |
T&C 2726-R |
Pedestrian Area |
2700K |
26 Watt |
~ 2,010 Lumens |
4.0 m / 13 ft |
Removing Existing GE Town & Country Luminaire Bulb & Electronics Assembly
It is a very straightforward process to remove the existing GE Luminaire electronics assembly in preparation for installing the ActiveLED Town & Country Retrofit, as described below.
Before starting any disassembly / assembly work, first disconnect the AC power from the Post Top Luminaire.
| • | Hinge open the top of the Luminaire. |
| • | Remove existing Bulb, Bulb Holder and Ballast Electronics from the base of the fixture out through the top of the fixture(details may vary slightly based on the model of Luminaire). |
| • | Thread the AC cabling from the ActiveLED Town & Country retrofit down the inside of the Luminaire and connect to the AC line feed. |
| • | Carefully lower the complete ActiveLED Retrofit assembly into the top of the Luminaire and secure to the top rim of the Luminaire using two existing machine screws. |
| • | Reconnect the AC power to verify that the installation is correct and the ActiveLED Retrofit is illuminated. |
| • | Close and secure the top of the Luminaire. |
The existing electronics assembly will need to be disposed of safely and in accordance with local regulations.

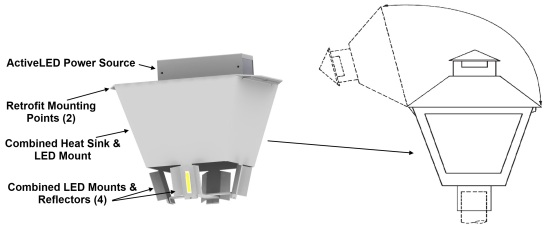

GE Town & Country Luminaire with ActiveLED® Retrofit Technology Installed
The following illustrates a GE Town & Country Luminaire with its original legacy electronics removed and the ActiveLED Town & Country Retrofit installed and fully functional.
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranty is 10 years on LED elements, fixtures and power supplies / drivers.
Ringdale is an ISO 9001:2015 company. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
NOTE: Town & Country Luminaire fixture, glass and pole are not included in the ActiveLED Retrofit price.
ActiveLED® Town & Country Retrofit Part Number:
00-27-2710-5026-R, CCT5000K
00-27-2710-4026-R, CCT4000K
00-27-2710-3526-R, CCT3500K
00-27-2710-3026-R, CCT3000K
00-27-2710-2726-R, CCT2700K
| Input Voltage: | • Auto-sensing 100..277V AC, 50 / 60 Hz • Digital Power Source, dedicated circuit strongly recommended |
|---|---|
| Power Stastics: | 24 Watt LEDs, 26 Watt Fixtures |
| Power Factor: | ~ 0.95 |
| Listings & Tests | cUL Listed Driver E332932-3, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A |
| Operating Temp: | -50..+65° C (-58..+149° F) |
| Dimensions: | 11.65" overall height, 9.8" wide x 12.4"
long (29.6 x 24.9 x 31.4 cm) |
| Weight: | 3.3 lbs (1.5 Kg) |
| CCT Color Temperatures: | 2700K, 3000K, 3500K, 4000K or 5000K in Accordance with ANSI C78.377A |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
