Bracket Kit adapts an ActiveLED® Square-Pole mounting assembly to a Round Pole, providing flexible mounting options
Sturdy design adapts any ActiveLED Square Pole mounting bracket for mounting on a Round Pole, particularly where drilling holes in the pole is impossible or inadvisable, since the adapter clamps around the pole and negates the need for drilling holes.
The Round Pole Adapter Kit is designed for easy installation with all parts pre-drilled and ready for assembly. The Adapters are sturdily made from 12 gauge 304-2B Stainless Steel and are suitable for use with round, hexagonal or octagonal poles - wood, steel, concrete or composite pole construction.

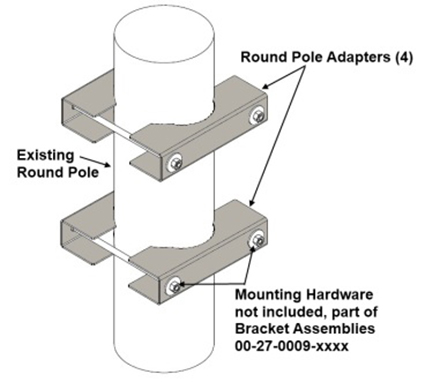

Schematic of the Adapter Bracket Assembly
Installing the Adapter Bracket is a very simple and straightforward process.
The adapter brackets "clamp" around the round pole and any suitable ActiveLED square pole mounting bracket is then attached to the adapters to provide a snug and secure installation.
The following schematic outlines the main components of the round pole adapter bracket which uses the installation hardware (bolts, nuts, washers) that is included in the 00-27-0009 series mounting assemblies.
Round Pole Adapter Kit Contents
• Round Pole Adapter (4)
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Round Pole Adapter Kit.
Ringdale is an ISO 9001:2008 company, registered under BSI certificate FM-01880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
Prerequisites
Requires an ActiveLED 00-27-0009 Series Square Pole Mounting Bracket Assembly, see separate datasheets for more details.
NOTES:
Mounting hardware not included, hardware included in 00-27-0009 Series mounting bracket assemblies, sold separately.
Round Pole Adapter Kit Part Number:
00-27-0009-0100, Unpainted Stainless Steel
| Construction Material: | All key components are 12 Gauge 304-2B unpainted Stainless Steel |
|---|---|
| Total Weight: | 4.5 lbs complete (2.1 Kg) |
| Kit Contents: | Round Pole Adapters (4) |
| Dimensions: | 9.0" L x 2.0" W x 2.8" H (22.9 x 5.1 x 7.1 cm) |
| Mounting Pattern: | Two 0.4 diameter holes (1.0 cm) on each Adapter at 7.0" centers (17.8 cm) |
| Round Pole O/D Sizes: | Accomodates 4" Minimum, 7" Maximum |
| Prerequisites: | Requires one ActiveLED Square Pole Mounting Bracket Assembly |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
