360° Pole Mounting Bracket Assembly provides flexible mounting options for six (6) ActiveLED® 40" Flood or BillBoard Lights to a square pole with heights to 80 feet.
Sturdy design securely mounts six ActiveLED 40" Flood or BillBoard Lights (using their "Allthread" end-bolts) vertically to a square pole. Each light fixture can be independently adjusted through 120° to provide precise rotational adjustment to separately align each light fixture with the task.
Additionally the top support for each light fixture is adjustable in 5° increments from a minimum of 30° from the vertical to a maximum of 60° to allow each fixture to be independently adjusted to project the light pattern nearer to or further from the mounting pole.
The 360° Pole Mounting Bracket Assembly clamps around the pole and is ideally suited for installations where it is not possible or inadvisable to drill holes or drive bolts into the Pole.
It is designed for easy installation with all parts pre-drilled and ready for assembly. All parts are sturdily made from 12 gauge 304-2B Stainless Steel.

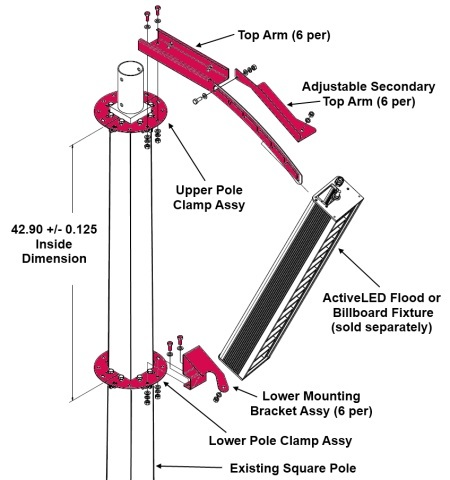

Detailed Schematic of the 360° Pole Mounting Bracket Assembly
360° Pole Mounting Bracket Assembly Contents
• Upper Arm Assemblies (qty 6)
• Lower Mounting Bracket Assemblies (qty 6)
• Upper Pole Clamp Assembly (qty 1)
• Lower Pole Clamp Assembly (qty 1)
• Assorted High-tensile stainless steel bolts, nuts & washers
NOT INCLUDED: Pole, Light Fixtures
ActiveLED® Floodlights and BillBoard Lights
Select the appropriate 40" Flood or BillBoard lights that best meet the application from the comprehensive Ringdale ActiveLED range, including:
• 24, 48, 72 or 96 Watt Fixtures
• BillBoard, Narrow, Wide, All Forward, FlagPole or "Stadium" Light Pattern
• Clear or Etched Second Diffuser
• Energy Management Options
Please refer to the separate Flood or BillBoard series datasheets for more details.
Square Pole versus Round Pole Mounting
The 360° Pole Mounting Assembly is designed to be mounted to a square pole. If the pole is round or hexagonal the Round Pole Adapter Kit part 00-27-0009-0100 will need to be ordered separately, one kit per pole.
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Mounting Bracket Assembly.
Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
Prerequisites
Requires ActiveLED 40" Flood or Billboard series lights.
NOTE: Pole and Light Fixtures not included in kit, light fixtures sold separately.
ActiveLED® 360° Pole Mounting Bracket Assy Part Number:
• 00-27-0004-0360, Unpainted Stainless Steel
• Optional Round Pole Adapter Kit: 00-27-0009-0100
| Construction Material: | All key components are unpainted 12 gauge T-304 Stainless Steel Optionally available in Brown, Silver, Bronze, White or Charcoal Grey to match the attached light fixtures |
|---|---|
| Kit Contents: | • Upper Arm Assemblies (qty 6) • Lower Mounting Bracket Assemblies (qty 6) • Upper Pole Clamp Assembly (qty 1) • Lower Pole Clamp Assembly (qty 1) • Assorted High-tensile stainless steel bolts, nuts & washers NOT INCLUDED: Pole, Light Fixtures |
| Total Weight: | ???? lbs complete (???? Kg) |
| Dimensions: | 6' overall unextended top diameter to 7'-6" fully extended (183 to 229 cm) |
| Independent Fixture Adjustments: | • 120° rotational adjustment (-28° to +92°) using each fixtures "Allthread" mounting • Vertical adjustment from 30° through 60° in 5° increments |
| Pole Sizes: | Suitable for mounting on Square Poles from 4" to 10" (10.2 to 25.4 cm) |
| Prerequisites: | ActiveLED Flood or Billboard light fixtures, fixtures sold separately |
| Round or Hexagon Pole Adapter: | If the mounting pole is round or hexagonal, then optional Round Pole Adapter Kit part 00-27-0009-0100 will need to be ordered separately, one kit per pole |
