Provides a 21st century solution for in-ground spotlights with an energy efficient, high performance LED retrofit with 16 Watt ActiveLED light engine
The U.S.-manufactured ActiveLED® In-Ground Retrofit-2 is an innovative, self-contained and factory-sealed LED light engine designed to easily replace the inefficient, high-wattage lamp assembly in most existing VA Flagpole in-ground buckets, providing energy savings of 50-89 percent.
Businesses, municipalities, universities, colleges and military installations use up-shining spotlights to illuminate or accent-light flag poles, building exteriors, parking structures and signage. The existing fixture is an in-ground round spotlight that employs bulb technology that is mounted inside a heat and corrosion-resistant "bucket". Typically, these lights have Metal Halide, High Pressure Sodium or CFL lamps and ballasts that run extremely hot and need regular maintenance.
The existing in-ground lamp and electronics can be easily replaced with the low-wattage ActiveLED In-Ground engine and the fixture will still have the same physical characteristics. The only noticeable difference / improvement in its outward appearance is a superior quality of light, which improves the safety value of its surroundings.
ActiveLED’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.
The ActiveLED In-Ground Light Retrofit-2 meets many commercial, residential and municipalities’ latest sustainability mandates for reducing energy usage.
ActiveLED® In-Ground Retrofit-2 (IGR-2) Product Overview
ActiveLED provides five models of In-Ground Retrofits for each of the VA Flagpole round up-lights for different lighting applications:
|
IGR-2 Product Code |
Application |
CCT Color |
Wattage |
Light Output |
Bucket Size |
In-Ground 277R2-5516 |
Up-shining |
5000K |
18 Watt |
~2,600 lm |
13" O/D |
In-Ground 277R2-4016 |
Up-shining |
4000K |
18 Watt |
~2,500 lm |
13" O/D |
In-Ground 277R2-3516 |
Up-shining |
3500K |
18 Watt |
~2,450 lm |
13" O/D |
In-Ground 277R2-3016 |
Up-shining |
3000K |
18 Watt |
~2,400 lm |
13" O/D |
In-Ground 277R2-2716 |
Up-shining |
2700K |
18 Watt |
~2,300 lm |
13" O/D |
ActiveLED® Similar Products
ActiveLED In-Ground Lighting systems are built for performance and reliability. Backed by a 10 year "No Light Loss" guarantee, our lights offer increased visibility and savings due to low energy use.
Removing Existing VA Flagpole in-ground Bulb & Electronics Assembly
It is a very straightforward process to remove the existing VA Flagpole up-shining electronics assembly in preparation for installing the factory-sealed ActiveLED In-Ground Retrofit, as described below.
Before starting any disassembly / assembly work, first disconnect the AC power from the up-shining fixture.
| • | Remove the four or six screws that secure the bezel and diffuser to the existing fixture body, safely put complete assembly to one side for reassembly. |
| • | Remove existing Bulb and Ballast Electronics from the body of the "bucket". |
| • | Connect the AC cabling from the ActiveLED In-Ground retrofit to the AC line feed within the existing bucket. |
| • | Reconnect the AC power to verify that the installation is correct and the ActiveLED Retrofit is illuminated. |
| • | Carefully place the factory-sealed ActiveLED Retrofit Engine assembly into the bucket and reinstall the existing Trim, Bezel and Seals using the original machine screws. |
The existing electronics assembly will need to be disposed of safely and in accordance with local regulations.

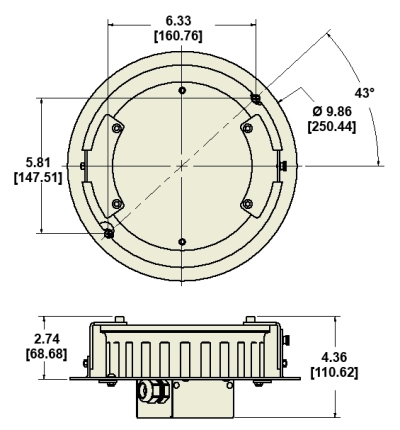

ActiveLED® IGR-2 In-Ground Retrofit Product Schematic
This schematic includes important dimensions to help determine if this ActiveLED retrofit will fit inside your existing in-ground bucket.

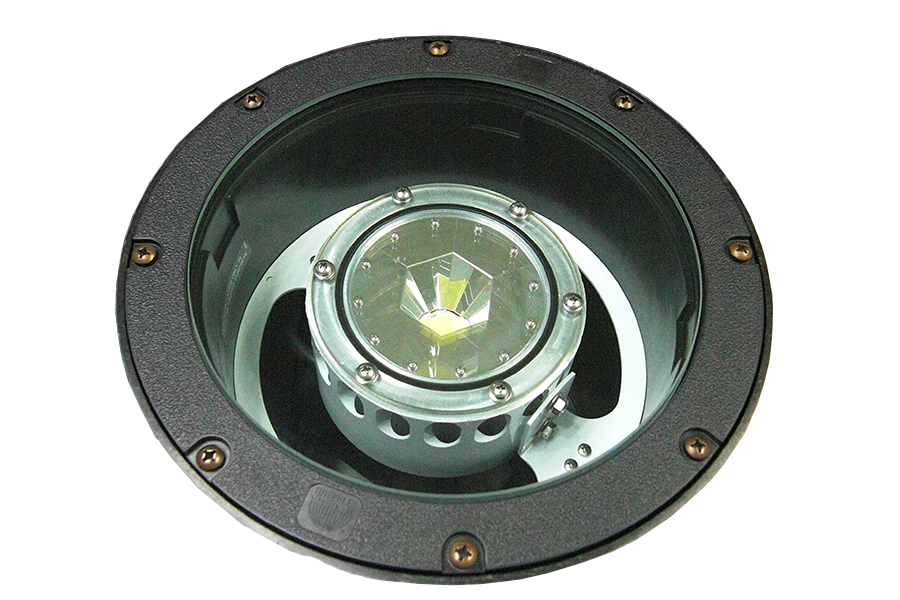

VA Flagpole In-Ground Bucket with ActiveLED® Retrofit Engine Installed
The following illustrates a VA Flagpole In-Ground Bucket with its original legacy electronics removed and the ActiveLED In-Ground Retrofit installed and fully functional.
ActiveLED® Technology
ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies / drivers.
ActiveLED is an ISO 9001:2015 company. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
NOTE: The VA Flagpole in-ground "bucket" is not included in the ActiveLED In-Ground Retrofit price.
ActiveLED® In-Ground Retrofit-2 (IGR-2) Part Numbers:
IGSRDB-U-C5016-WH, 13", CCT5000K
IGSRDB-U-C4016-WH, 13", CCT4000K
IGSRDB-U-C3516-WH, 13", CCT3500K
IGSRDB-U-C3016-WH, 13", CCT3000K
IGSRDB-U-C2716-WH, 13", CCT2700K
| Input Voltage: | • Voltage-specific, specify at time of ordering from the following options: (1) 100 VAC, 60Hz (2) 110/120 VAC, 60 Hz (3) 208 VAC, 60 Hz (4) 240 VAC, 50 Hz (5) 277 VAC, 60 Hz. • Digital Power Source, dedicated circuit breaker strongly recommended |
|---|---|
| Power Stastics: Power Factor: | 16 Watt fixtures ~ 0.95 |
| Retrofit Contents: | Factory-sealed Retrofit Engine: • 15 Watt LED Element & Heatsink • Power Supply / Driver Retrofit Excludes: Top Lens / Diffuser Mounting rings / flanges / seals The in-ground "bucket" |
| Listings & Tests: | cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A |
| Operating Temp: | -40..+60° C (-40..+140° F) |
| Dimensions: Weight: | Dependent upon model selected, complete Retrofit fits inside either existing 9.5" or 13.0" O/D in-ground Greenlee RDB bucket TBD |
| Top Lens: | Reassembled using existing top lens / diffuser |
| CCT Color Temperatures: | 2700K, 3000K, 3500K, 4000K or 5000K in accordance with ANSI C78.377A |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
