A mounting bracket for attaching an ActiveLED® Series WallPack or WallSconce light fixture to a wall or flat surface - includes mounting-hole patterns that match-up with the ActiveLED light fixture
Simplifies the installation of the ActiveLED WallPack or WallSconce light fixture to a wall or flat surface while blanking-off any existing holes in the wall or structure from previous light fixtures.
Using this Mounting Bracket to install a light fixture is a very simple and straightforward process.
Mounting holes (typically 4) for this bracket need to be drilled in the wall or structure in the appropriate location, as well as a hole for the AC line connection. Optional punch-outs can be used to mount to an existing Junction Box. With the bracket mounted to the wall or flat surface and the AC line connections made, the WallPack or WallSconce fixture is simply "clipped" onto the top of the bracket, swung down into position and secured with two self-tapping screws (supplied).
The 3 inch internal gap between the bracket and the fixture makes an ideal weather-proof junction box for the AC line connections to the fixture.
Schematic of Mounting Bracket and WallPack Light
The following schematic details the installing of a 00-27-6602 Series WallPack light fixture onto the Mounting Bracket, the same principle applies when attaching this bracket to a WallSconce.
Dimensional Schematic of the Mounting Bracket

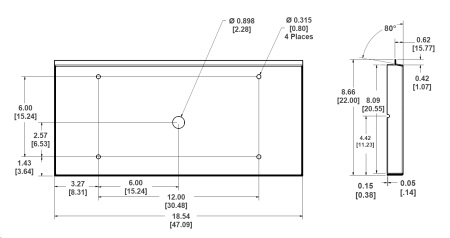

To assist in determining suitability and installation parameters, the following schematic details the dimensions of the WallPack Mounting Bracket.
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Mounting Bracket.
Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
Please refer to the ActiveLED website for more details on our ActiveLED® 00-27-6602 series of WallPack light fixtures, 00-27-8601 and 00-27-7601 Series of WallSconces.
ActiveLED® WallPack or WallSconce Mounting Bracket Part Numbers:
00-27-0008-0005, Unpainted Stainless Steel
00-27-0008-0005-BR, stainless steel powder-coated Brown
00-27-0008-0005-CG, stainless steel powder-coated Charcoal Grey
00-27-0008-0005-SL, stainless steel powder-coated Silver
00-27-0008-0005-BZ, stainless steel powder-coated Bronze
| Material: | 16 Gauge Laser-cut Stainless Steel |
|---|---|
| Weight: | 3.1 lbs (1.4 Kg) |
| Dimensions: | 18.54" x 8.66" x 3.00" x 16 Gauge (47.1 x 22.0 x 7.6 cm) |
| Contents: | • Mounting Bracket (1) • Self-tapping screws (2) NOTE: Installer to supply all wall-mounting bolts and hardware |
| Compatibility: | ActiveLED WP1 Series WallPack light fixture, WSO Series Outdoor WallSconce and WSI Series Indoor WallSconce |
| Mounting Bracket Part Number: | 00-27-0008-0005 |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
