A universal extension adapter for attaching an ActiveLED^® Street / Parking Lot / Trail or Dual-Head Light to a Square Pole, moves the light fixture 6.5" from the pole. Also suitable for mounting the light fixture to a vertical wall or flat surface

Certain Street / Parking Lot / Walkway applications require a light fixture to be attached to a square pole but extended away from the pole by 6.5". For example, when two or more fixtures are connected to one pole, particularly at a 90 degree right-angle to each other.

All of the ActiveLED^® Mast-Mounted Street / Parking Lot / Trail lights are designed and manufactured with a common mounting plate and mounting hole pattern, so the ActiveLED Extension Kit can be used to attach any of these LED light fixtures to a square pole, extending the light fixture 6.5" away from the pole.

Installing the Extension Kit is a very simple and straightforward process.
One side of the Extension Kit attaches to an ActiveLED Street / Parking Lot / Trail Light with two high-tensile bolts and the other side of the kit then attaches to the square pole using two additional high-tensile carriage bolts - all bolts included in the Extension Kit.

The Extension Bracket is suitable for use with square steel poles. Also suitable for mounting the light fixture to a vertical wall or flat surface.

The Extension Bracket is sufficiently robust that it will even support an ActiveLED Dual Head Street Light (two lights on a single mounting), see separate ActiveLED Dual Head datasheet for more details.

Schematic of the Extension Kit 00-27-0002-0200

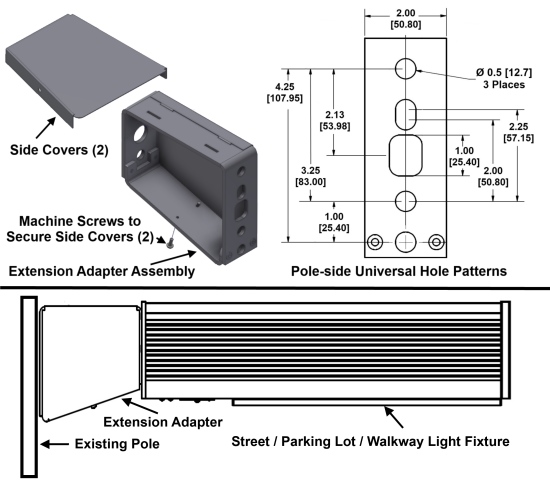

The schematic below includes the dimensions of the multiple universal holes on the pole-side of the extension bracket, as well as a side view of the bracket attached to an ActiveLED street light at one end and an existing pole / mast at the other end.

Contents of Extension Kit 00-27-0002-0200

Extension Kit 00-27-0002-0200 can be powder coated to match the color of the attached fixture and the kit consists of the following parts:

● Extension Bracket / Adapter (1)
● Side Covers (2) & machined screws (2)
● 1½" x ⅜"-16 Carriage Bolts (4)
● Assorted nuts and washers

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Extension Bracket.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Please refer to the ActiveLED website for more details on our Street / Parking Lot / Walkway light fixtures.

Extension Kit Part Number: 00-27-0002-0200
